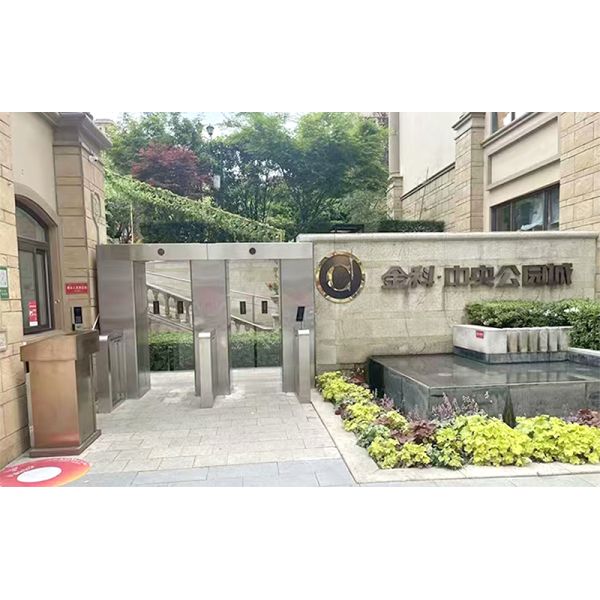

Full Height Turnstile JSD-QG06 with Emergency Unlock for Restricted Areas
Overview
The JSD-QG06 Full Height Turnstile is a high-security pedestrian access control solution designed for restricted areas, industrial facilities, government buildings, data centers, and critical infrastructure projects. Built with premium 304 brushed stainless steel and powered by a DC brushless motor, the system delivers stable operation, low maintenance, and long-term durability. Featuring emergency unlock functionality and 12 pairs of infrared sensors, the JSD-QG06 enhances safety while effectively preventing unauthorized access and tailgating. The turnstile supports RFID cards, face recognition systems, QR code scanners, fingerprint devices, and other intelligent access control integrations. With single or bi-directional control modes and over 3 million operating cycles, the JSD-QG06 provides secure and efficient pedestrian management for demanding indoor and outdoor environments.
Product Features
High-Security Full Height Structure
The full height design prevents climbing, tailgating, and unauthorized entry into restricted or sensitive areas.
Emergency Unlock Function
Supports emergency unlocking during power failure or emergency evacuation situations to improve safety compliance.
DC Brushless Motor Drive
Equipped with a high-performance DC brushless motor for smooth operation, low noise, and long service life.
Advanced Infrared Detection
Standard configuration includes 12 pairs of infrared sensors for accurate pedestrian monitoring and enhanced anti-tailgating protection.
Durable SUS304 Stainless Steel
Constructed with premium 304 brushed stainless steel for superior corrosion resistance and structural durability.
Multiple Access Control Integrations
Compatible with:
Flexible Passage Modes
Supports both single-direction and bi-directional pedestrian access management.
Indoor & Outdoor Installation
Designed for stable and reliable operation in both indoor and outdoor environments.
Technical Specifications
| Item |
Specification |
| Product Model |
JSD-QG06 |
| Product Type |
Full Height Turnstile |
| Material |
SUS304 Brushed Stainless Steel |
| Top Cover Thickness |
1.5mm |
| Housing Thickness |
1.2mm |
| Product Dimensions |
3160 * 1600 * 2250mm |
| Passage Direction |
Single / Bi-directional |
| Drive Mode |
DC Brushless Motor |
| Opening Time |
0.5 Seconds |
| Barrier Material |
Acrylic or Stainless Steel |
| Infrared Sensors |
Standard 12 Pairs (Expandable) |
| Communication Interface |
RS485 / Optional TCP-IP |
| Input Signal |
Dry Contact / 12V Pulse Signal |
| Working Voltage |
DC24V / DC12V |
| Power Input |
AC220V±10%, 50Hz±4% |
| Passage Width |
700mm |
| Arm Length |
600mm |
| Operating Temperature |
-10℃ ~ 60℃ |
| Humidity |
5%~95%, Non-condensing |
| Working Environment |
Indoor / Outdoor |
| Service Life |
Over 3 Million Cycles |
Application Scenarios
Government Restricted Areas
Core Problem Solved:
Prevents unauthorized access and enhances security management for confidential or sensitive facilities.
Data Centers & Server Rooms
Core Problem Solved:
Protects critical infrastructure by ensuring only authorized personnel can enter secure zones.
Industrial Plants & Factories
Core Problem Solved:
Controls employee movement and restricts unauthorized entry into hazardous production areas.
Airports & Transportation Facilities
Core Problem Solved:
Improves passenger and staff access management while maintaining high-level security standards.
Secuity Forces Facilities
Core Problem Solved:
Provides strict perimeter access control with anti-tailgating and emergency evacuation support.
Power Plants & Critical Infrastructure
Core Problem Solved:
Enhances pedestrian security management and protects critical operational environments.
FAQ
Q1: What is the emergency unlock function?
The emergency unlock function allows the turnstile to release automatically during emergencies or power failures to support safe evacuation.
Q2: How many infrared sensors are included?
The JSD-QG06 comes standard with 12 pairs of infrared sensors, and additional sensors can be customized if required.
Q3: What access control systems are supported?
The system supports RFID card readers, face recognition devices, QR code scanners, fingerprint systems, ID card readers, and third-party access control platforms.
Q4: Is the JSD-QG06 suitable for outdoor use?
Yes. The turnstile is designed for both indoor and outdoor installations.
Q5: What type of motor is used in the system?
The JSD-QG06 uses a DC brushless motor for stable operation, low maintenance, and long service life.
Q6: Does the system support bi-directional access?
Yes. The turnstile supports both single-direction and bi-directional pedestrian control modes.
Q7: What is the expected service life?
The JSD-QG06 is designed for over 3 million continuous opening and closing cycles.
Q8: Can the product be customized?
Yes. Customization services are available for dimensions, infrared sensor quantity, communication methods, barrier materials, and access control integrations according to project requirements.
